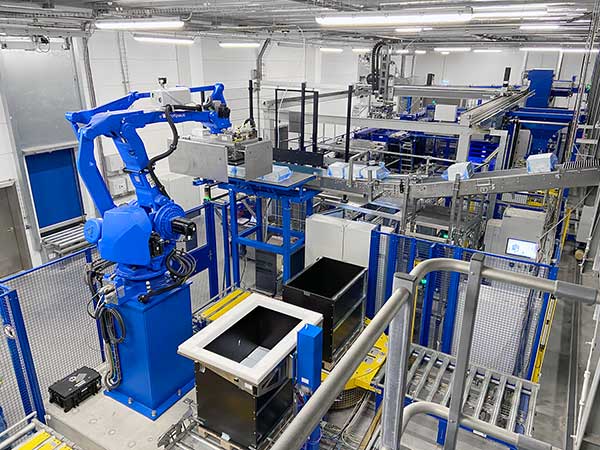

Robot Palletizing

With our palletizing robot Profirob A4 we have succeeded in setting standards.

The Profirob A4 is equipped with four servo axes. The robot is equipped with a counterweight, whereby high payloads of up to 800 kg can be palletized, depalletized or commissioned in an energy-saving way. The use of an industrial robot brings our customers additional flexibility and cost savings. All palletizing requirements can be realized in full layers in the high performance range. In order picking, the Profirob A4 impresses with its flexibility. With our higher-level S7 robot controller, we have developed software that makes effective multi-station processing easy. Another important advantage of the Profirob A4 is its small footprint and precise operation. Due to the low acquisition costs, more productivity and cost savings can be achieved even with small handling tasks.

We specialise in handling applications in the beverage, food and non-food sectors: Packing, palletising, repacking, order picking or call-off controls are possible in the smallest of spaces.

We meet even the most difficult requirements!

Roboterpalettierung
Schwenksäulenpalletierer der Firma Profipack

Swivel columns Palletizer

With its space-saving, solid construction, the Profipal 2800 swivel column palletizer is of simple design and features the latest drive technology.

With its unique flexibility, it can reach up to four pallet locations.

The Profipal 2800 is available as:

  • Pallet unloader with hook or clamping head
  • Pallet loader with hook or clamping head
  • Universal loader with shutter head
  • Bag palletizer
  • Order picking - Unloader
  • Picking - Loader

And is therefore used for:

  • Palletising and depalletising crates
  • Palletizing of cardboard, soft packages, buckets
  • Palletizing of bags
  • Depalletizing of pallets for provision in the picking department
  • Palletizing in picking systems

The processing of pallets and layer pads is possible with the basic machine, in the course of palletizing and with simple, standardized accessory assemblies.

Universal Palletizer

Our universal pallet loader has the unique feature that it can palletize the layer flush on the outer edge of the pallet like a shutter head. This enables optimum volume utilisation and the best possible transport stability. This function is only possible with other manufacturers with an upper infeed.

This makes this universal loader extremely flexible and with its space-saving arrangement and low-maintenance drive technology particularly interesting for our customers.

Technical details:

Performance up to 400 layers / h
possible products cans / bottles / jars / buckets / canisters
Palets from 1200x800 mm to 1200x1200 mm
Pallet conveying direkction freely selectable
Intermediate layer processing Intermediate layers and slipcovers made of cardboard, Wood, sheet metal and plastic
Floor layer removal freely selectable in the control panel
Lifting gear drive position-controlled with toothed belt
Schichtenschieber Position-controlled layer pusher with toothed belt or chain
Centering front / lateral position controlled with rack and pinion or pneumatic
Pallet centering can be integrated into the loading plate
Energy saving activities variable counterweight and energy recovery
Vacuum generation energy-saving
Grouping station height freely selectable after level compensation
Light barriers Sick
Drives SEW
Position control Danfoss
Control Siemens S7
Switch cabinet Rittal
Universalpalettierer der Firma Profipack
Universalpalettierer der Firma Profipack im Einsatz bei Silberquelle

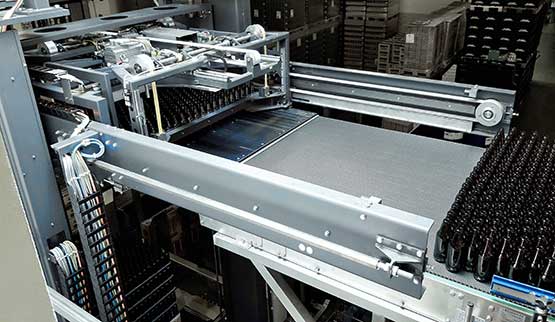

New glass- / Canpusher

With the container pusher (bottle pusher, can pusher) all products, which are palletized on an intermediate layer, can be pushed off and fed into production. The layer pads are lifted off and stacked in a layer pad magazine in the area of the pusher. The bottom layer can also be lifted off the pallet. The pusher has been designed as a universal machine and can process all common pallet formats. The bottle discharge can be arranged at working height or, in the case of high performance machines, also at the top.

The output is approx. 400 layers/h depending on the design and the push-off position.

New glass depositer / -lifter

The Profipal 2800 in its simplest design with a flanged layer pad inserter (layer pad remover) is ideally suited for palletizing or depalletizing new glass. To pick up bottles or glasses, the Profipal is equipped with a tube, bar or suction gripper. The layer pads and slipcovers or slipcover bases are handled with the layer pad inserter (layer pad remover).

The Profipal 2800 can depalletise or palletise bottles in a very confined space. The layer pads are deposited or removed in a layer pad magazine.
